Support facial, fingerprint, palm, password and card to verify.
For attendance function, support use U-disk for self-service report and software to management attendance.
Suitable for facial recognition access control and attendance in office buildings, parks, banks,shops, hospitals and other places.
Item No :
T7Brand Name :
ZD SECUROrigin :
ChinaOEM MOQ :

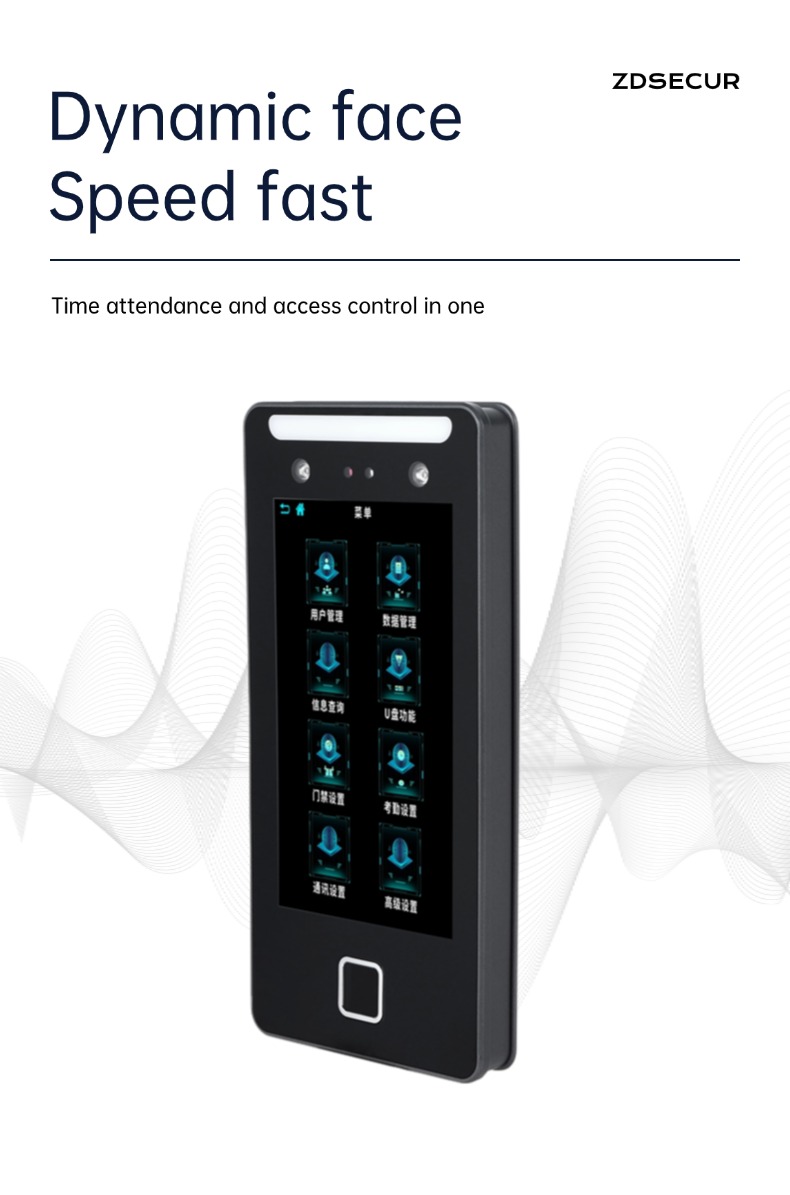

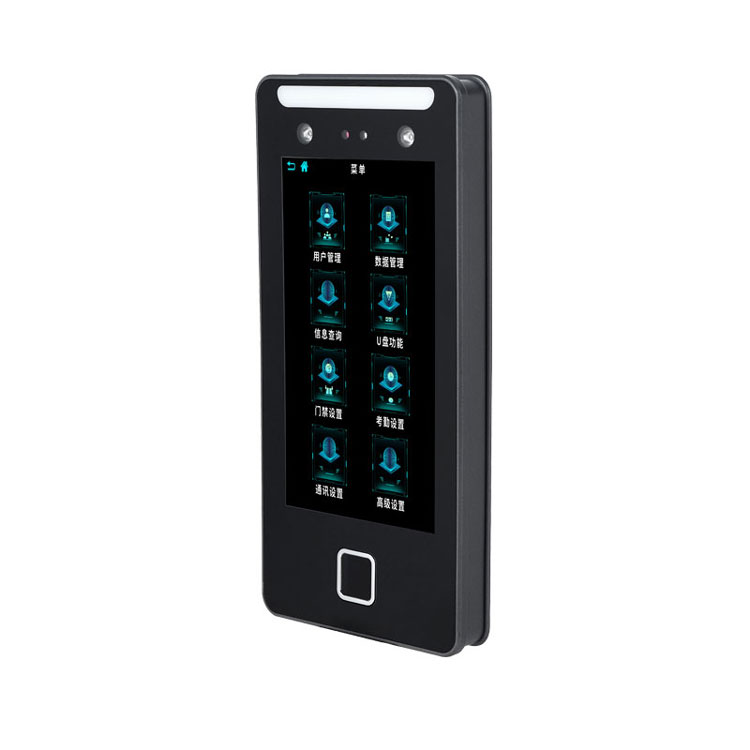

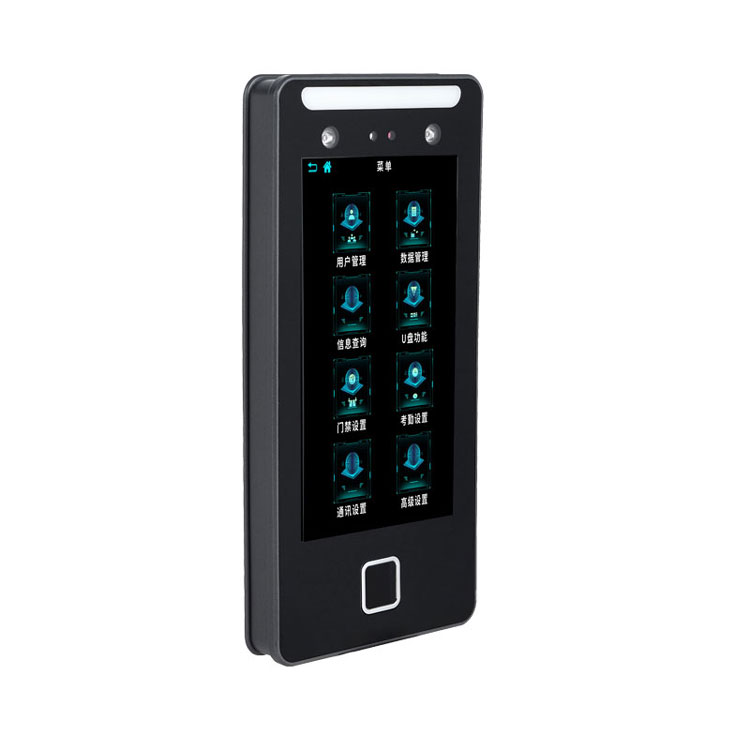

1pc7" Dynamic Facial Fingerprint Recognition Time Attendance and Access Control System T7
|
Dynamic recognition Access Control Machine |
||
|
Display |
Screen |

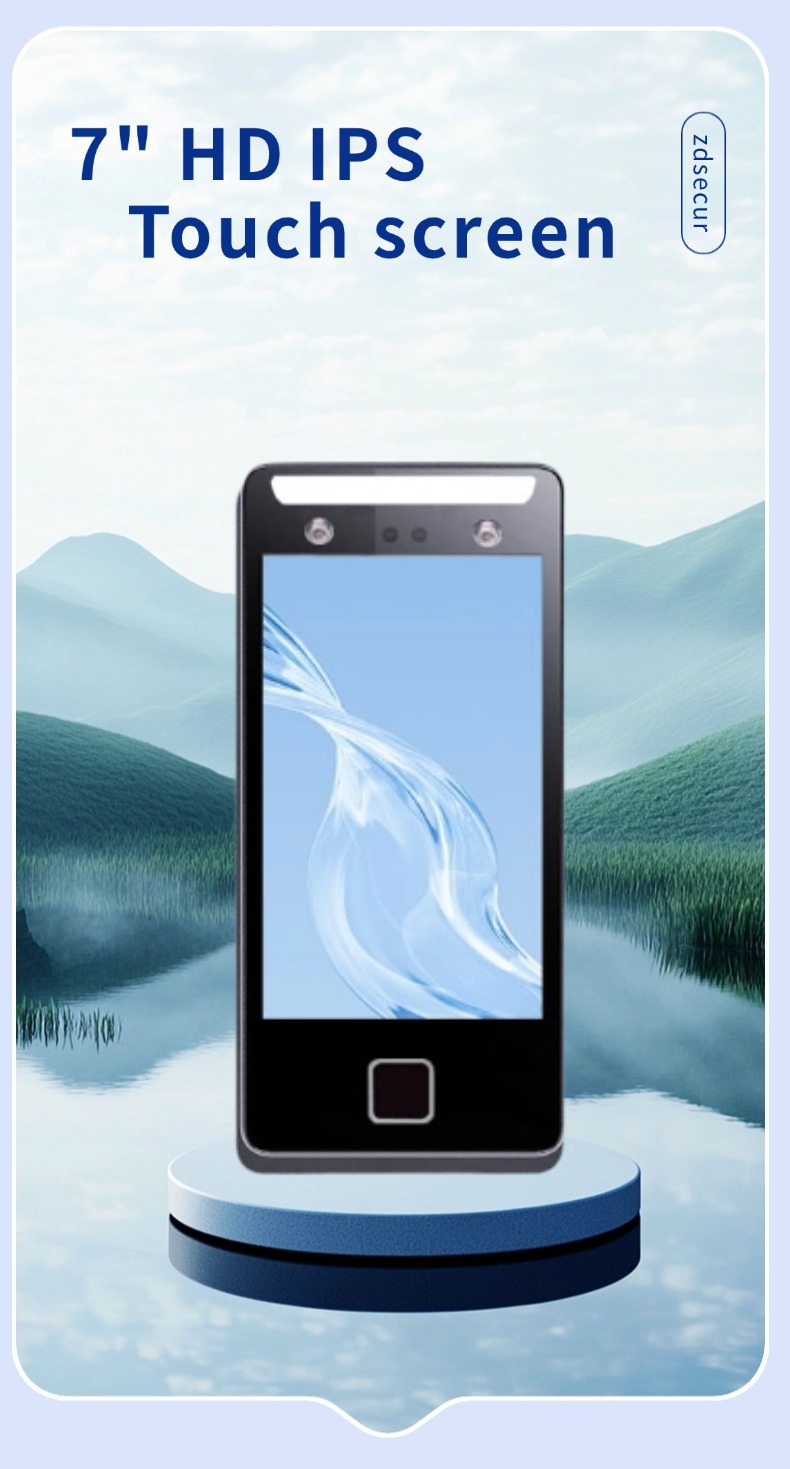

7”capacitive touch screen |
|
Basic configuration |
OS |
LINUX 3.10 |
|
CPU |
Quad-core 1.2G |
|
|
Cameras |
1.3 million pixel infrared camera+1.3 million pixel color WDR wide dynamic binocular camera |
|
|
Identify capacity |
Identify way |
Facial, palm, fingerprint, password, card |
|
Face Capacity |
1000 |
|
|
Fingerprint capacity |
5000 |
|
|
Palm capacity |
500 |
|
|
Password & card capacity |
1000 |
|
|
Logs capacity |
200000 |
|
|
RAM |
512MB |
|
|
ROM |
4G |
|
|
Identify speed |
0.3S |
|
|
Identify distance |
Enable live detection at 0.3-2.8 meters |
|
|
Live detection |
Eliminates to use photos and videos for check-in or out |
|
|
Interface |
U disk |
USB2.0 x 1 to download & upload data |
|
Power in |
DC12V x 1 |
|
|
Network |
Local network(TCP/IP or WIFI),cloud (BS) |
|
|
Attendance |
Self-service |
U disk to download the attendance EXCEL report |
|
Shift |
Can set shift in machine and use U disk to upload the shift |
|
|
Software |
Free Ethernet attendance & access software |
|
|
Access control |
Access |
Lock delay, sensor,door bell, NO, NC, external access control reader, Weigand 26/34 output, Weigand input |
|
Work environment |
|
Work temperature：-15℃～+45℃ |
|
Others |
Bell |
Can set bell for attendance time, can add external bell |
|
Fill light |
Supports infrared light, and the white fill light automatically lights up when a face is captured in low light |
|
|
Power |
Working current |
Standby current：300mA Working current: 360mA |
|
Working voltage |
DC12V |
|
|
Install |
Install way |
Wall mounted |
|
Weight |
Net weight |
0.6 kg |
|
Gross weight |
0.8kg |
|
|
Dimension |
Device |
240x116x25mm |
|
Color box |
290x160x65mm |
|
|
Carton |
|
Dimension：530x310x34mm，20pcs/carton, 16kg |
Support facial, fingerprint, palm, password and card to verify. For attendance function, support use U-disk for self-service report and software to management attendance. Suitable for facial recognition access control and attendance in office buildings, parks, banks,shops, hospitals and other places.
ZDT68 is a facial long distance recognition and dynomic recognition time attendance and access control machine, user no need to touch the machine to check in/ out or access.
T69 is our latest long distance fingerprint and facial recognition terminal, it is designed to provide you with a high level of security and convenience. It is a Linux operation OS access control machine, support secondary development.
ZDT72 is a slim attendance access control device that integrates facial recognition and fingerprint recognition.
ZDF1 is an access control device that combines facial and fingerprint recognition. It features an aluminum alloy casing.
ZDT90 is a facial and fingerprint recognition attendance access control machine, providing fast and efficient clock-in for attendance management and door entrance system
ZDF3 is a face, finger, card and password recognition access control machine with time attendance function.
ZDF2 is a facial fingerprint card password attendance access control device, which is an impressive access control device that catches people's attention.
